Industrial heated stripping equipment

Heated strip tanks built around your chemistry, parts, and operators.

US Strip Tank Company builds American-made heated strip tanks for coating removal shops that need safer temperature control, sealed electrical systems, and practical maintenance access.

Request a Quote Open WL4 Manual

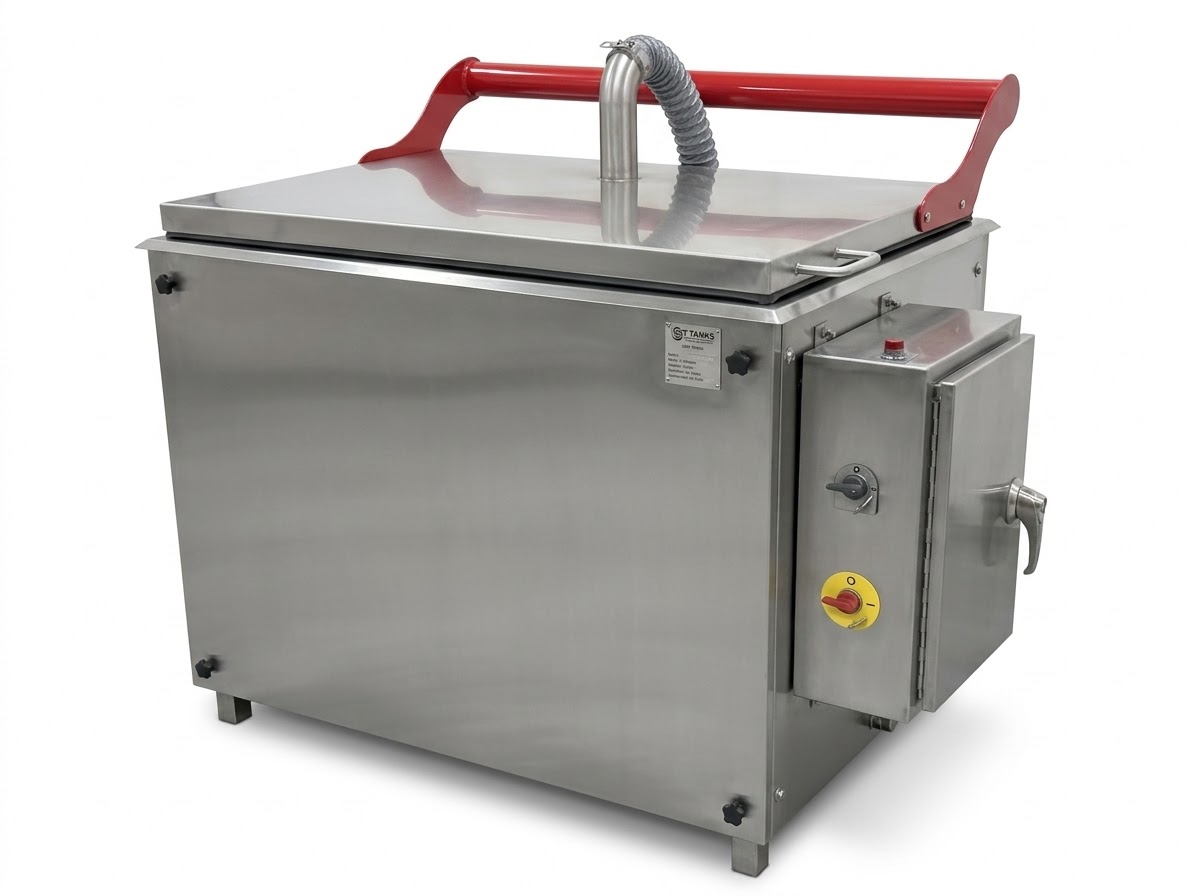

WL4 heated strip tank with stainless lid and control enclosure

Standard and custom builds

Choose a proven WL4 foundation or spec a tank around your shop.

Available

WL4 Heated Strip Tank

A shop-scale heated stripping system with 7-gauge 304 stainless construction, two 1000W strip heaters, NEMA 4X stainless controls, redundant temperature sensing, hardwired SSR fault detection, and dual drain sludge service.

30 x 40 x 32 in approximate interior
240VAC single phase, 20A minimum dedicated circuit
180F operating target, 200F maximum solution temperature
3 in vent, 100 CFM minimum ventilation

Review WL4 Specs

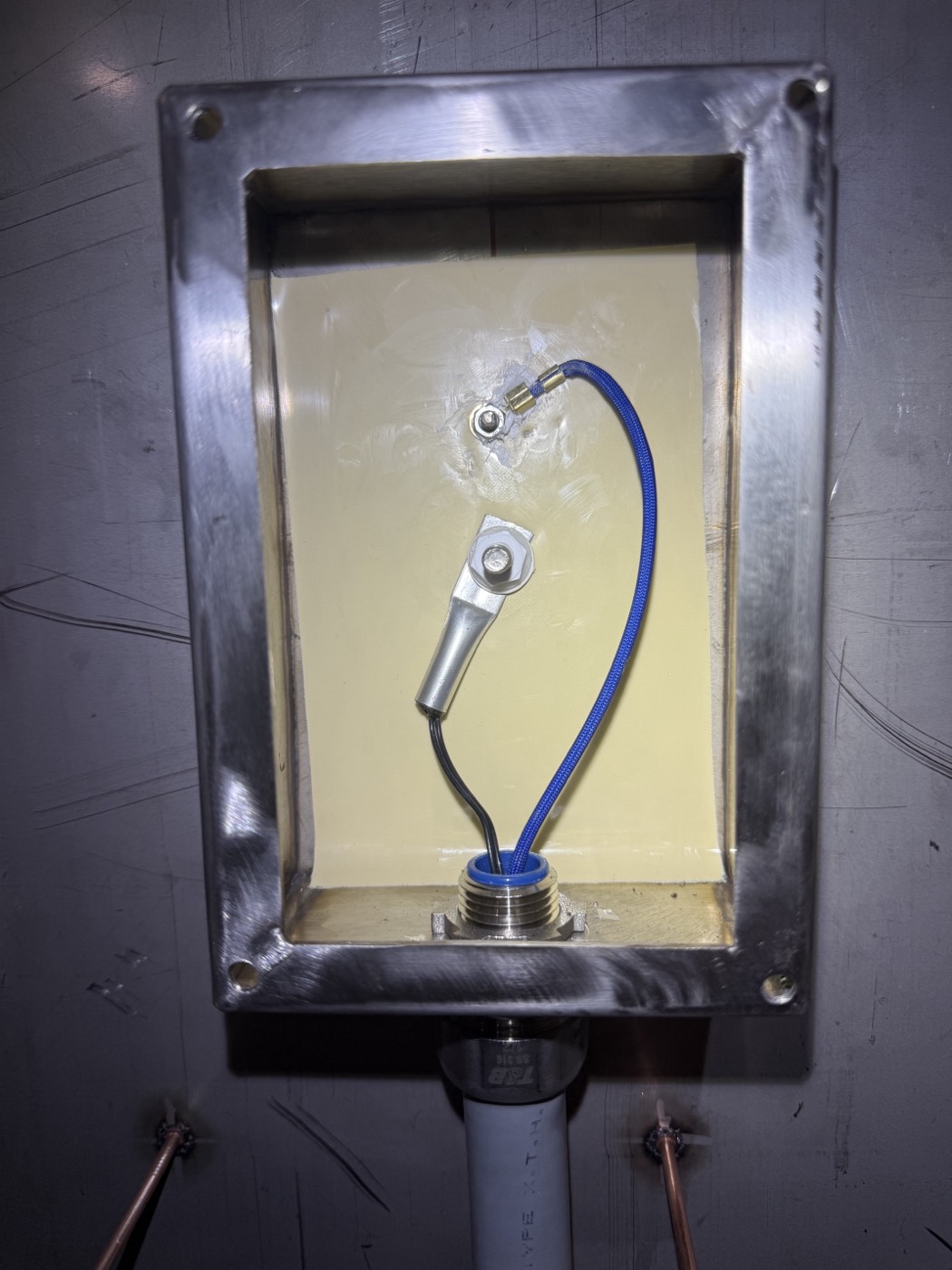

WL4 redundant thermistor probe enclosure and wiring detail

Custom engineered

Custom Size and Use Tanks

Part dimensions, chemistry, throughput, floor space, ventilation, and maintenance routines are different in every shop. We can build wider, deeper, chemical-specific, or workflow-specific tanks around the same safety-first engineering approach.

Custom tank dimensions and working volume
Chemistry-specific materials and fittings
Custom heating layouts and service access
Operator diagnostics and safety controls

Start a Custom Quote

Applications

Built for demanding coating removal workflows.

Powder coating removal

E-coat removal

Paint and primer removal

Cerakote and firearms finishing

NMP-based heated stripping Caustic, MEA, and KOH environments
